Cryogenic Low Noise Amplifiers
Select Model

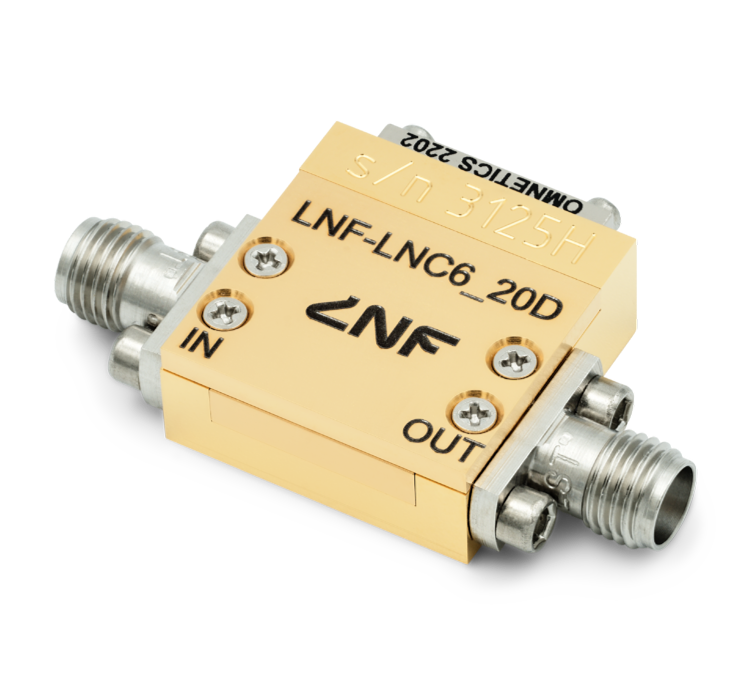

LNF-LNC6_20D
LNF-LNC6_20D
- RF Bandwidth 6 – 20 GHz
- Noise Temperature 3.8 K
- Noise Figure 0.06 dB
- Gain 32 dB
- DC Power Vds = 1.2V, Ids = 18mA
- RF Connectors Female SMA
- 6 to 20 GHz coverage with 3.8 K noise temperature, suited to applications spanning microwave and lower millimetre-wave frequencies
- MMIC InP HEMT technology: low unit-to-unit variation for repeatable multi-channel deployments
- Gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm): SMA RF ports, 9-pin Female Nano-D DC connector
- Must be operated in a vacuum environment when below the dewpoint
- Tested at 296 K and 5 K before delivery. Full test report included
