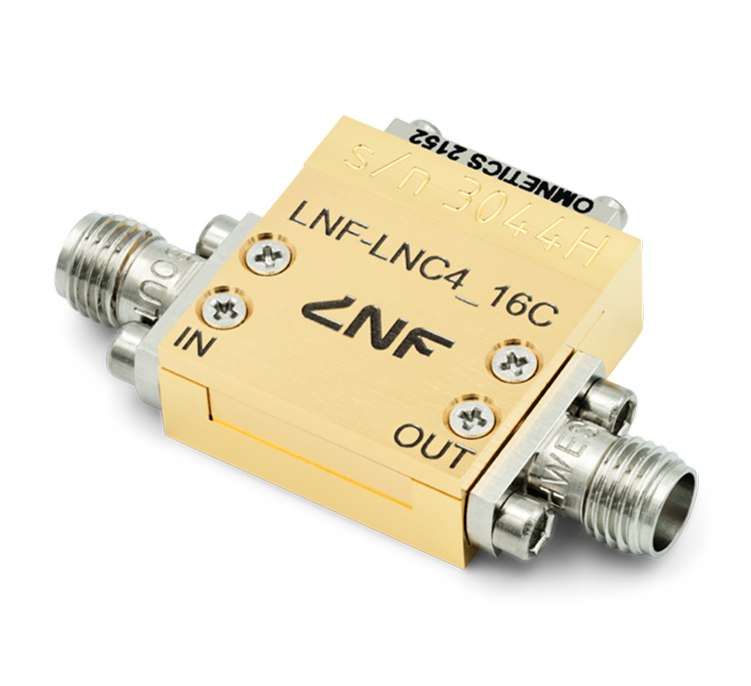

LNF-LNC4_16C
LNF-LNC4_16C
- RF Bandwidth 4 – 16 GHz
- Noise Temperature 3.1 K
- Noise Figure 0.05 dB
- Gain 36 dB
- DC Power Vds = 1.1V, Ids = 16mA
- RF Connectors Female SMA
- Covers 4 to 16 GHz with 3.1 K noise temperature and 36 dB gain in a single module, eliminating the need for multiple narrow-band amplifiers
- MMIC InP HEMT technology: Consistent performance across units for multi-channel system builds
- Gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm) with SMA RF ports, 9-pin Female Nano-D DC connector
- Must be operated in a vacuum environment when below the dewpoint
- Tested at 296 K and 5 K before delivery. Full test report included
