Cryogenic Low Noise Amplifiers
Select Model

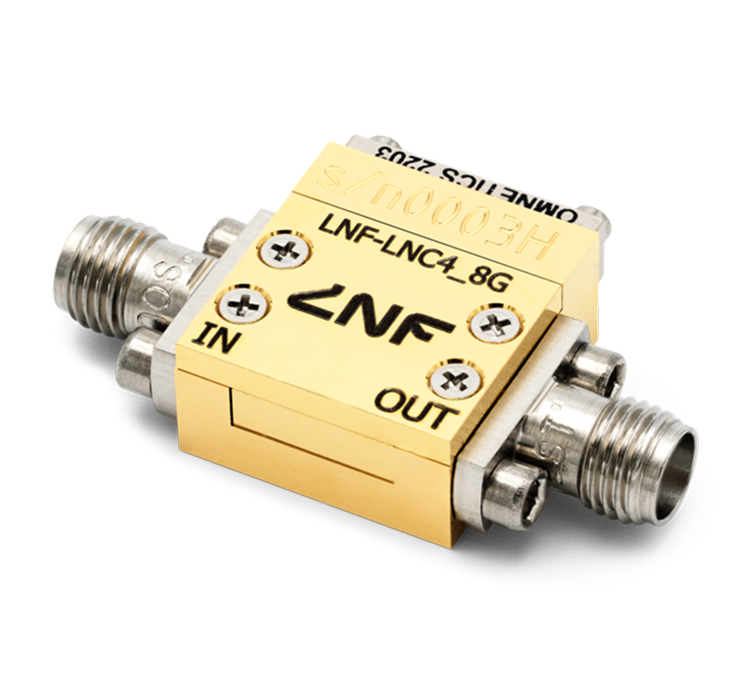

LNF-LNC4_8G
LNF-LNC4_8G
- RF Bandwidth 4 – 8 GHz
- Noise Temperature 1.5 K
- Noise Figure 0.02 dB
- Gain 39 dB
- DC Power Vds = 0.6V, Ids = 13mA
- RF Connectors Female SMA
- The industry’s lowest noise temperature at 4-8 GHz — 1.5 K average noise temperature and 0.02 dB noise figure
- Compact gold-plated aluminium module (17.00 × 15.80 × 7.80mm), smaller form factor than the standard LNF module.
- SMA RF ports, 9-pin Female Nano-D DC connector, single gate and drain supply
- Must be operated in a vacuum environment when below the dewpoint
- Tested at 296 K and 5 K before delivery. Full test report included
