Cryogenic Low Noise Amplifiers
Select Model

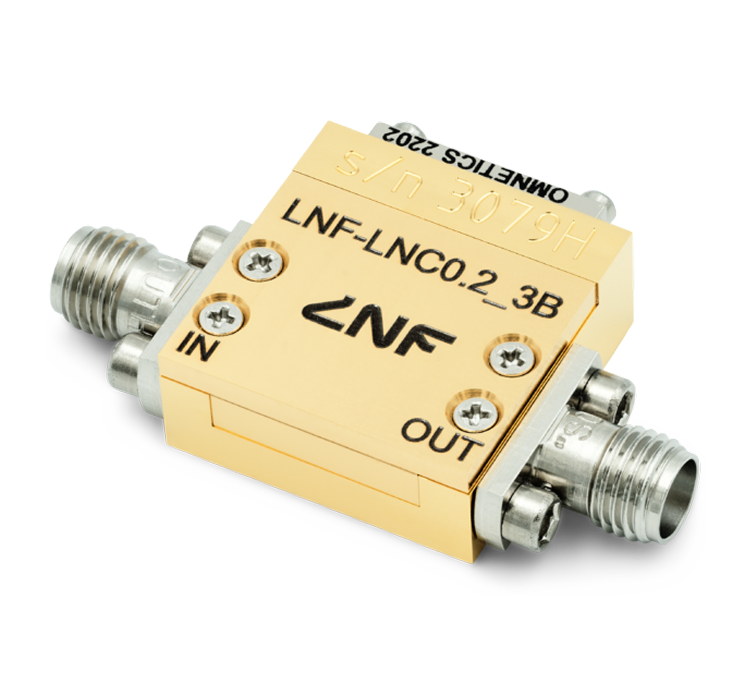

LNF-LNC0.2_3B
LNF-LNC0.2_3B
- RF Bandwidth 0.2 – 3 GHz
- Noise Temperature 1.6 K
- Noise Figure 0.02 dB
- Gain 30 dB
- DC Power Vds = 1.1V, Ids = 23mA
- RF Connectors Female SMA
- Ultra-low noise cryogenic LNA using LNF’s proprietary InP HEMT technology. MMIC design ensures excellent unit-to-unit variation
- Packaged in gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm excluding connectors): SMA RF ports, 9-pin Female Nano-D DC connector
- Single gate and drain supply, compatible with LNF-PS3b power supply and LNF-NANO9M DC connector
- Must be operated in a vacuum environment when below the dewpoint
- Tested at 296 K and 5 K before delivery. Full test report included
RELATED PRODUCTS
While you are here
4-12 GHz Triple Junction Isolator/Circulator
Cryogenic Isolators / Circulators- Frequency Range 4 – 12 GHz
- Insertion Loss 0.5 dB typical
10-18 GHz Single Junction Isolator/Circulator
Cryogenic Isolators / Circulators- Frequency Range 10 – 18 GHz
- Insertion Loss 0.3 dB typical

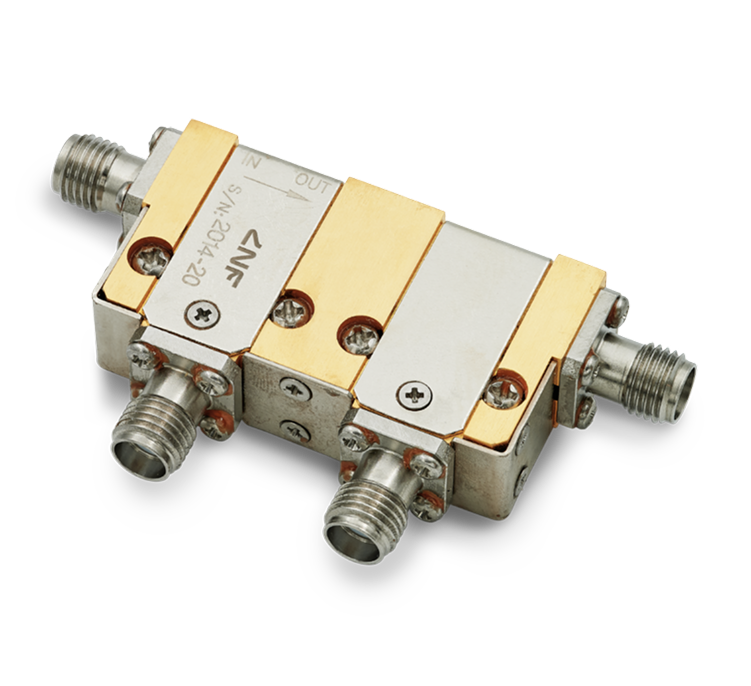

4-12 GHz Dual Junction Isolator/Circulator
Cryogenic Isolators / Circulators- Frequency Range 4 – 12 GHz
- Insertion Loss 0.4 dB typical

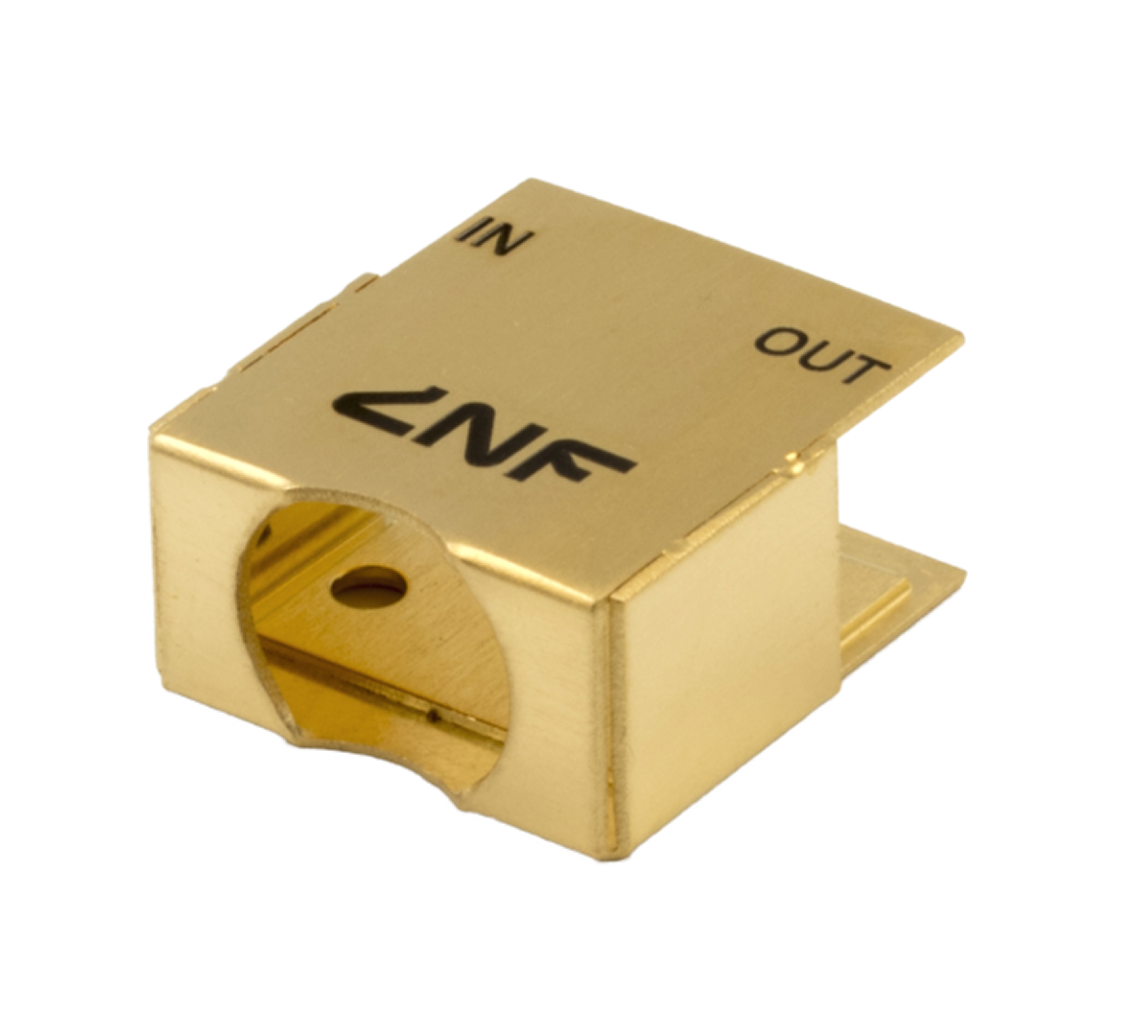

LNF-SHIELD4_8_SJ
