Cryogenic Low Noise Amplifiers
Select Model

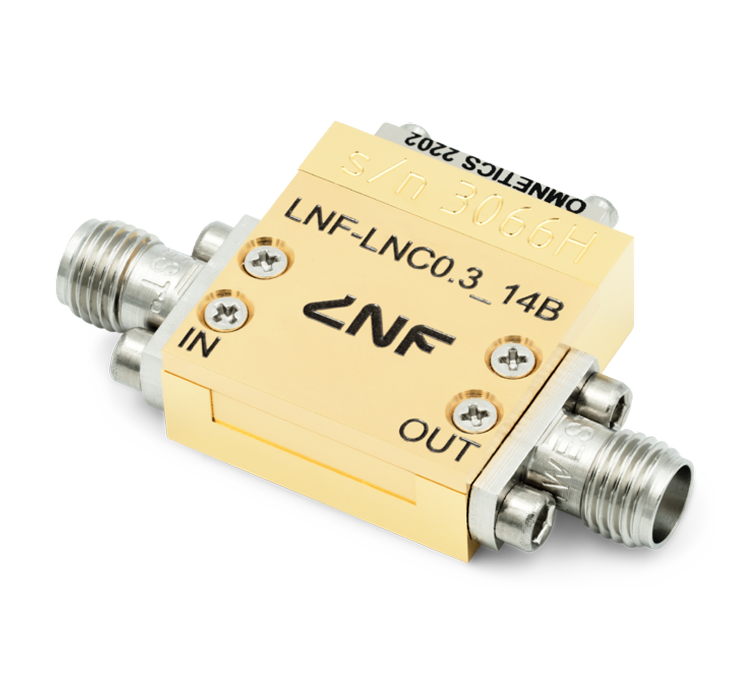

LNF-LNC0.3_14B
LNF-LNC0.3_14B
- RF Bandwidth 0.3 – 14 GHz
- Noise Temperature 3.6 K
- Noise Figure 0.05 dB
- Gain 37 dB
- DC Power Vds = 1.2V, Ids = 16mA
- RF Connectors Female SMA
- Broadband cryogenic LNA covering 0.3 to 14 GHz, the widest coaxial frequency range in the LNF cryogenic lineup
- MMIC InP HEMT technology with excellent unit-to-unit variation for multi-channel system integration
- Gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm): SMA RF ports, 9-pin Female Nano-D DC connector
- Must be operated in a vacuum environment when below the dewpoint
- Tested at 296 K and 5 K before delivery. Full test report included
RELATED PRODUCTS
While you are here

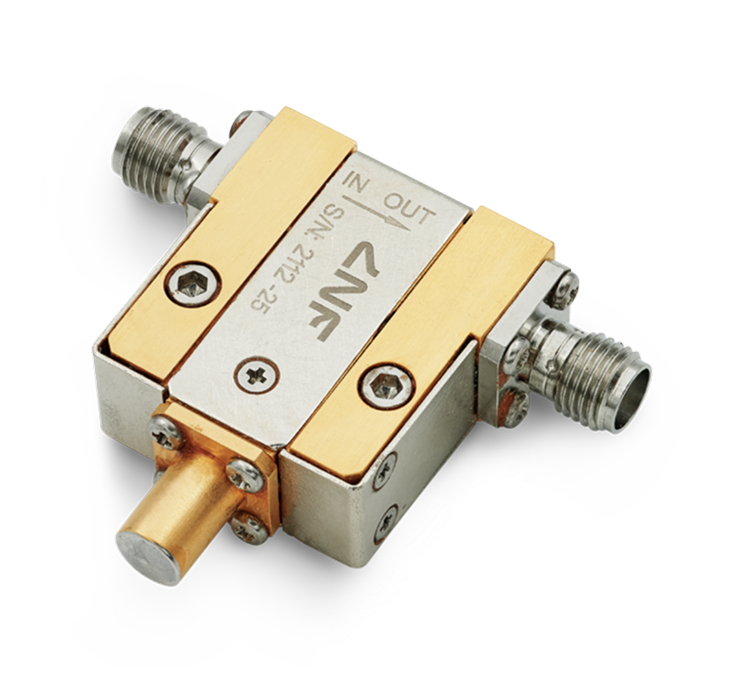

4-12 GHz Single Junction Isolator/Circulator
Cryogenic Isolators / Circulators- Frequency Range 4 – 12 GHz
- Insertion Loss 0.2 dB typical
10-18 GHz Single Junction Isolator/Circulator
Cryogenic Isolators / Circulators- Frequency Range 10 – 18 GHz
- Insertion Loss 0.3 dB typical
LNF-TERM 4_12A
Cryogenic Isolators / Circulators- Function Cryogenic Termination for Circulator-to-Isolator Conversion
- Return Loss >20 dB typical
4-12 GHz Triple Junction Isolator/Circulator
Cryogenic Isolators / Circulators- Frequency Range 4 – 12 GHz
- Insertion Loss 0.5 dB typical
Showing 4 of 30 Cryogenic Low Noise Amplifiers
