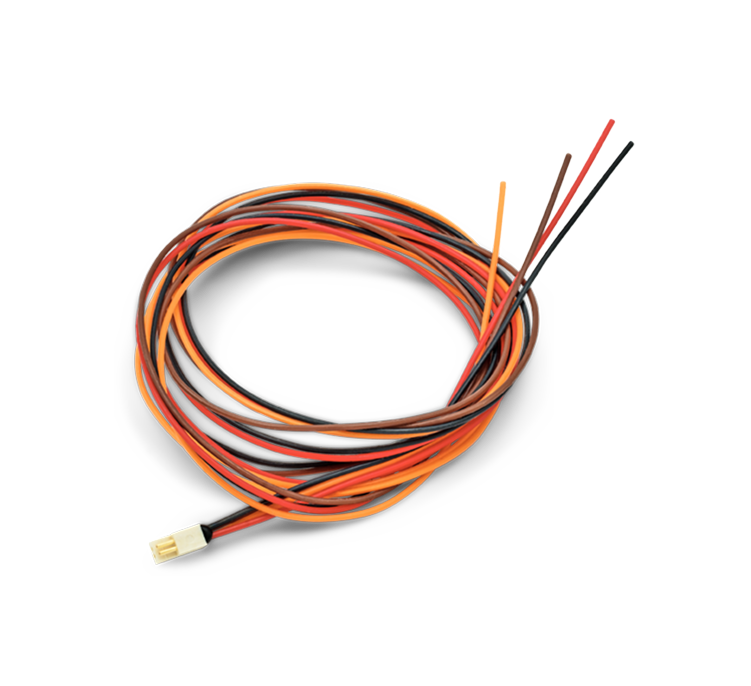

LNF-NANO4p
LNF-NANO4p
- Function DC Bias Connector for LNF LNAs
- Connector Type Nano 4-pin polarized
- Cable 46cm, 32 AWG copper wire
- Insulation Color-coded PTFE
- Compatible With All LNF LNAs with Nano 4-pin polarized DC input (incl. LNF-LNR4_8F)
- Mating connector for the Nano 4-pin polarized DC bias input on LNF room temperature LNAs.
- Prewired with 46cm of 32 AWG copper wire with color-coded PTFE insulation. Ready for direct connection to the LNF-PS4 or a bench supply without additional fabrication
- The room temperature counterpart to the LNF-NANO9M, same form and function for LNAs using the 4-pin polarized connector instead of the 9-pin Nano-D
