Room Temperature Low Noise Amplifiers
Select Model

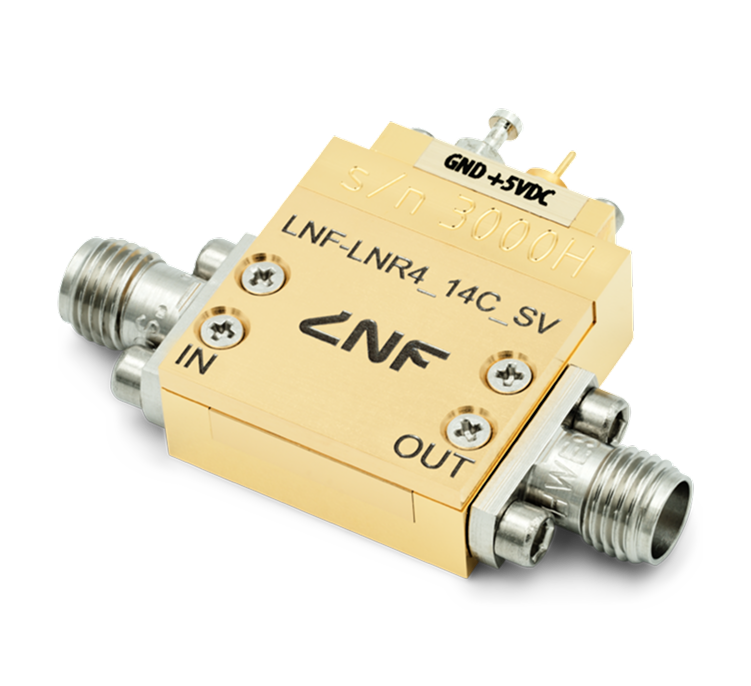

LNF-LNR4_14C_SV
LNF-LNR4_14C_SV
- RF Bandwidth 4 – 14 GHz
- Noise Temperature 57 K
- Noise Figure 0.78 dB
- Gain 40 dB
- DC Power V = 5V, I = 60mA
- RF Connectors Female SMA
- Room temperature LNA, 4 to 14 GHz coverage with 57 K noise temperature and 40 dB gain
- MMIC InP HEMT technology ensures consistent unit-to-unit performance; important for multi-channel signal chains and phased array receivers where matched amplifier characteristics are a system requirement.
- Compact gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm), SMA RF ports, 2-pin turret DC connector
- Must be operated in a vacuum environment when below the dewpoint
- Tested at 296 K before delivery. Test report included
