Room Temperature Low Noise Amplifiers
Select Model
LNF-LNR55_96WA_SV
LNF-LNR55_96WA_SV
- RF Bandwidth 55 – 96 GHz
- Noise Temperature 280 K
- Noise Figure 2.86 dB
- Gain 27 dB
- DC Power V = 5V, I = 40mA
- RF Connectors WR12 waveguide
- 55 to 96 GHz coverage using WR12 waveguide packaging; pushes InP HEMT amplification capability.

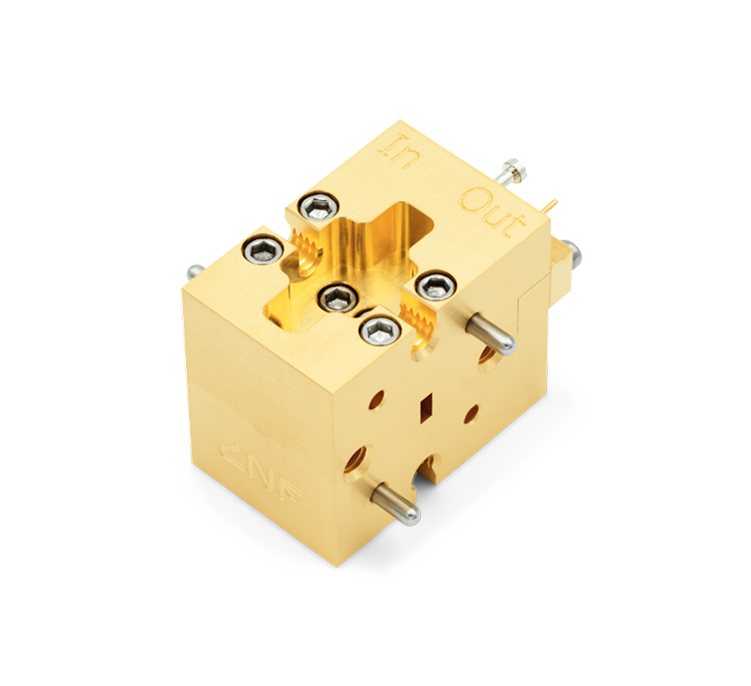

- Compact gold-plated aluminium waveguide module (14.92 × 23.47 × 19.20mm), WR12 RF connectors, 2-pin turret DC connector
- MMIC InP HEMT technology, consistent unit-to-unit performance across the full 41 GHz covered bandwidth
- Must be operated in a vacuum environment when below the dewpoint
- Tested at 296 K before delivery. Test report included
