Room Temperature Low Noise Amplifiers
Select Model

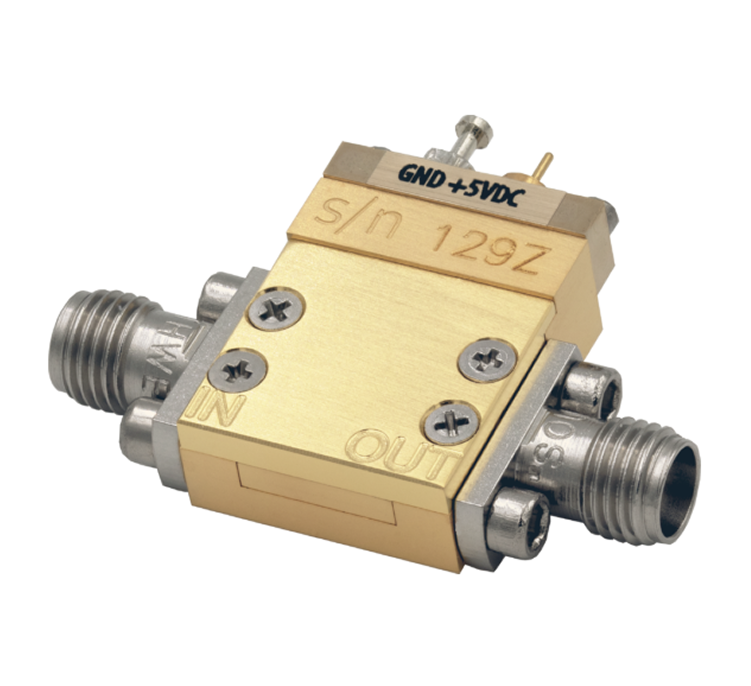

LNF-LNR26_62A_SV
LNF-LNR26_62A_SV
- RF Bandwidth 26 – 62 GHz
- Noise Temperature 200 K
- Noise Figure 2.3 dB
- Gain 35 dB
- DC Power V = 5V, I = 35mA
- RF Connectors 1.85mm coaxial
- 26 to 62 GHz in a single compact coaxial module (17.80 × 15.15 × 6.80mm), covering one of the widest contiguous millimetre-wave bands available in LNF’s room temperature range
- 1.85mm coaxial connectors cover the full bandwidth without waveguide transitions.
- Compact form factor allows direct integration into mm-wave measurement rigs and compact receiver modules without waveguide flanges
- MMIC InP HEMT technology, excellent unit-to-unit variation across the 36 GHz of covered bandwidth
- Must be operated in a vacuum environment when below the dewpoint
- Tested at 296 K before delivery. Test report included
