Hipot Testers & Electrical Safety: V10X Series

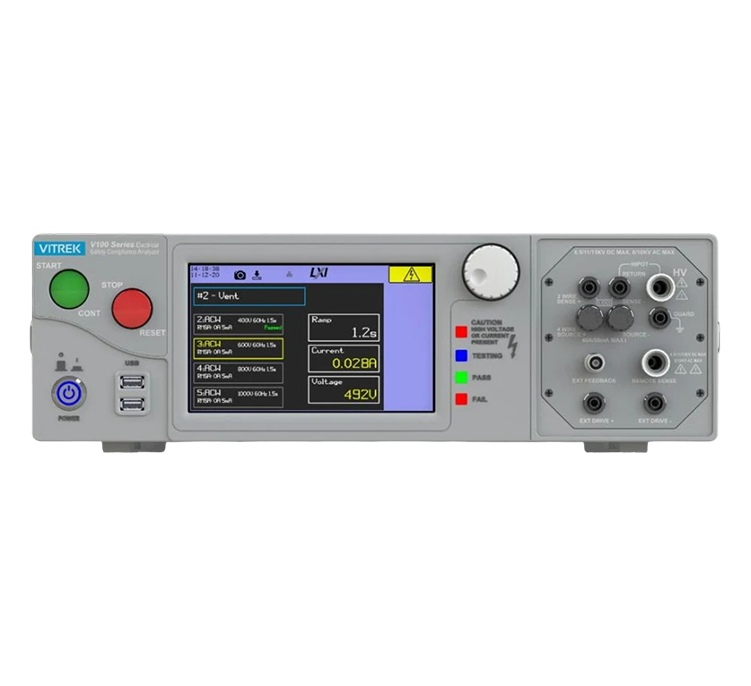

V101
- AC Hipot 20V – 6KV / 50mA
- DC Hipot 20V – 6KV / 50mA
- Leakage Resolution 100 pA
- IR Range 3TΩ Range
- Ground Bond Not included
- Platform Touchscreen / Automation-Ready
The V101 is the entry-level V10X. AC and DC hipot testing to 6KV with 100 pico-amp leakage resolution, full TΩ insulation resistance, graphical touchscreen workflow, and automation-ready SCPI interfaces. The newest generation of Vitrek hipot architecture.
The V10X runs a full-colour graphical touchscreen for visual sequence editing with real-time measurement charts, paired with DSP-driven 100 pA leakage resolution, phase angle separation of resistive and capacitive leakage, and configurable arc detection (4–40µS pulse width, 1–30mA amplitude). Built-in PDF and CSV export sit alongside native SCPI over Ethernet, USB, RS232, and optional GPIB, with direct control of up to 1,600 HV scanner channels and 400Hz testing for avionics compliance.
Overview
The V101 is the foundational V10X — AC and DC hipot to 6KV, 100 pA leakage resolution, TΩ IR, and the full V10X touchscreen and automation architecture. The starting point for manufacturers moving to next-generation electrical safety test infrastructure.
Specifications
- AC Hipot: 20V – 6KV, 50mA (100mA / 200mA options)
- DC Hipot: 20V – 6KV, 50mA
- IR Range: 3TΩ range
- Leakage resolution: 100 pA
- Phase angle measurement: In-phase and quadrature components
- Arc detection: 4–40µS pulse width / 1–30mA amplitude, configurable
- Breakdown detection: <150µS
- HV scanner control: Up to 1,600 channels
- 30KVAC external option available
- Dimensions: 132mm × 432mm × 457mm / 9kg
Additional Information
- Interfaces: Ethernet/LAN, USB, RS232, Digital I/O, optional GPIB, embedded WiFi
- Reports: Built-in PDF + CSV generation
- Certification: EN 61010-1 / EN 61326-1
- Made in USA
