Hipot Testers & Electrical Safety: V7X Series

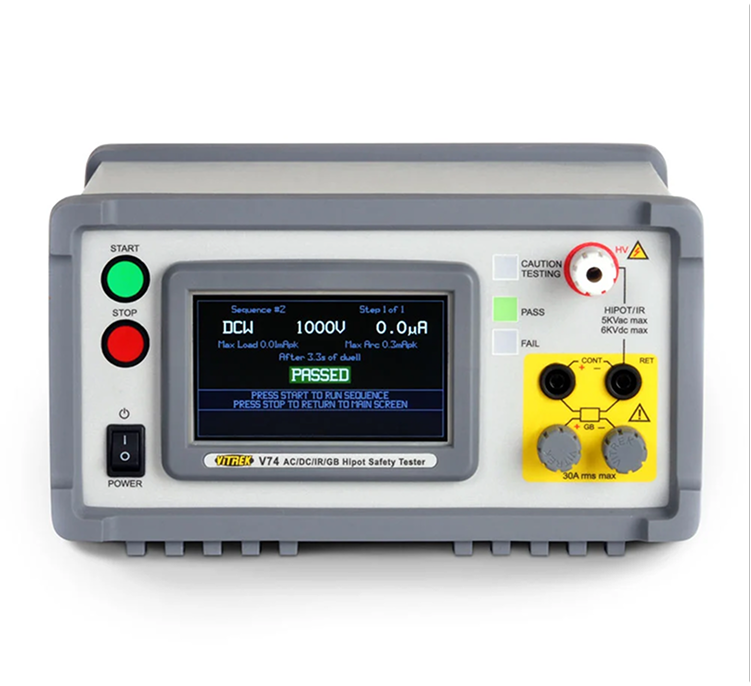

V74
- AC Hipot Up to 5KV / 20mA
- DC Hipot Up to 5KV / 10mA
- IR Range Up to 450 GΩ
- Leakage Resolution 1uA AC/ 0.1uA DC
- Ground Bond 30A included
- Min Test Time 100mS
The V74 is the full-capability V7X — AC hipot, DC hipot, insulation resistance, and 30-amp ground bond testing in a single compact instrument. For production lines and labs requiring comprehensive 4-in-1 safety compliance in one unit.
The V74 adds 1–30A RMS ground bond testing (42A peak) at 100µΩ resolution and ships with the K-2R lead set, building on the V73’s hipot/IR capability with a 4.3″ touchscreen, fan-free design, and 150µS safety shutdown on load breakdown. Memory holds 999 steps across 60 sequences over USB 2.0, RS232, and Digital I/O, with 964i scanner ground bond routing and optional APVD-74 daily verification available, backed by a 2-year warranty and calibration interval.
Overview
The V74 adds 30-amp ground bond to the full V7X hipot and IR feature set — the single instrument choice for comprehensive electrical safety certification covering BIS, IEC, UL, and CSA requirements without a separate ground bond tester.
Specifications
- AC Hipot: 10V – 5000Vrms, 20mA max, 50 or 60Hz
- DC Hipot: 20V – 5000VDC / 10mA
- IR: 20V – 5000VDC, up to 450GΩ
- Ground Bond: 1–30A RMS (42A peak), 100µΩ resolution, 4-wire
- Leakage resolution: 1uA AC/ 0.1uA DC
- Arc detection: Selectable 1–20mA
- Min test time: 100mS
- Safety shutdown: <150µS (load breakdown)
- Test memory: 999 steps / 60 sequences
- Display: 4.3″ colour touchscreen
- Dimensions: 137mm × 248mm × 284mm / 7.9kg
Additional Information
- Interfaces: USB 2.0, RS232, Digital I/O
- Scanner support: Up to 4 × 964i (256 channels)
- Certification: EN61010, CE Safety Mark
- Calibration interval: 2 years
- Made in USA
