Hipot Testers & Electrical Safety: V7X Series

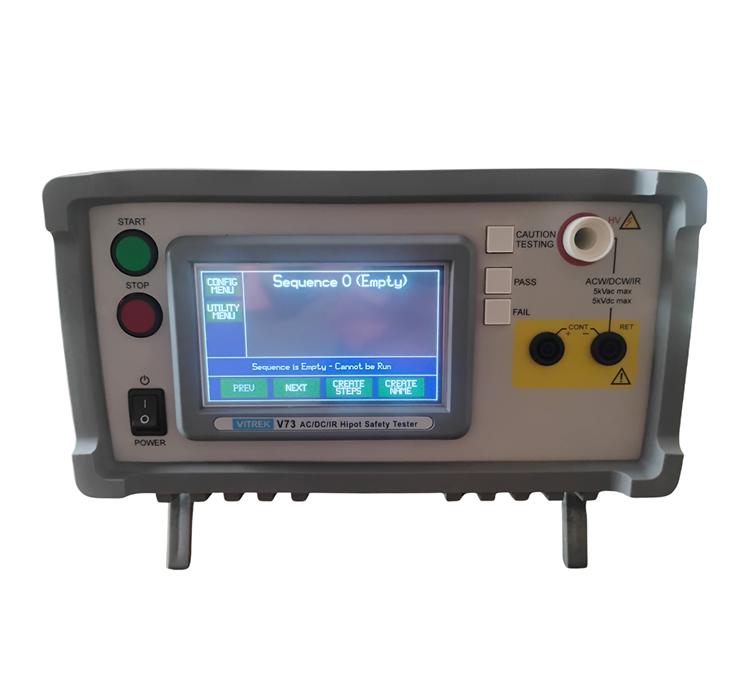

V73
- AC Hipot Up to 5KV / 20mA
- DC Hipot Up to 5KV / 10mA
- IR Range Up to 450 GΩ
- Leakage Resolution 1uA AC/ 0.1uA DC
- Ground Bond Not included
- Min Test Time 100mS
The V73 covers AC hipot, DC hipot, and insulation resistance testing to 5KV in a compact, fan-free design with a 4.3″ colour touchscreen — the complete 3-in-1 safety tester for labs and production lines where ground bond is handled separately.
A 4.3″ colour touch display makes the V73 straightforward to programme and operate without navigating nested menus. Fan-free design eliminates moving parts for quieter, more reliable operation. Minimum test time of 100mS enables fast production line throughput. Safety shutdown on load breakdown in under 150µS.
Test memory stores up to 999 steps and 60 test sequences. Continuously variable IR test voltage from 20V to 5000V, with insulation resistance measurement up to 450GΩ. Multi-mode IR with Steady/Rising Pass modes. Selectable arc detection from 1 to 20mA.
USB 2.0, RS232, and Digital I/O interfaces are standard. Compatible with up to four 964i 64-channel HV scanners for multi-point test configurations up to 256 channels.
Overview
The V73 is the workhorse of the V7X line — AC hipot, DC hipot, and IR in a compact, touchscreen-operated instrument that’s fast, accurate, and straightforward to deploy on a production line or in a test lab.
Specifications
- AC Hipot: 10V – 5000Vrms, 20mA max, 50 or 60Hz
- DC Hipot: 20V – 5000VDC
- IR: 20V – 5000VDC, up to 450GΩ
- Leakage resolution: 1uA AC/ 0.1uA DC
- Arc detection: Selectable 1–20mA
- Min test time: 100mS
- Safety shutdown: <150µS (load breakdown)
- Test memory: 999 steps / 60 sequences
- Display: 4.3″ colour touchscreen
- Dimensions: 137mm × 248mm × 284mm / 6.8kg
Additional Information
- Interfaces: USB 2.0, RS232, Digital I/O
- Scanner support: Up to 4 × 964i (256 channels)
- Certification: EN61010, CE Safety Mark
- Calibration interval: 2 years
- Made in USA
