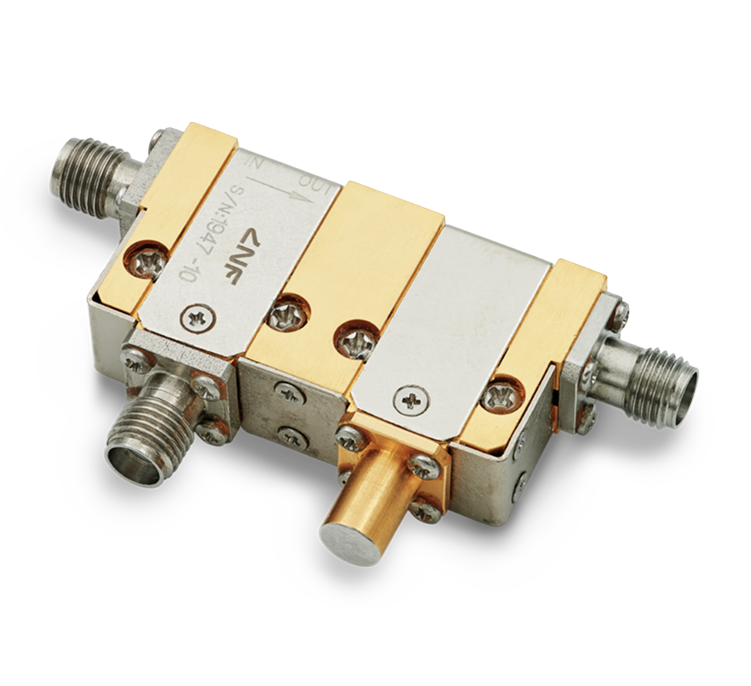

4-8 GHz Dual Junction Isolator/Circulator
- Frequency Range 4 – 8 GHz
- Insertion Loss 0.2 dB typical
- Isolation 42 dB typical
- Port Match 22 dB typical
- Body Gold-plated OFHC copper
- RF Connectors Female SMA
- Two junction stages in a single housing, more compact than cascading two separate single-junction units, with better thermal contact for the inter-stage element
- Same OFHC copper body and SMA coaxial packaging as the single junction, fits the same mounting footprint
- Available as isolator or circulator configuration
- Used in ultra-low temperature physics research
