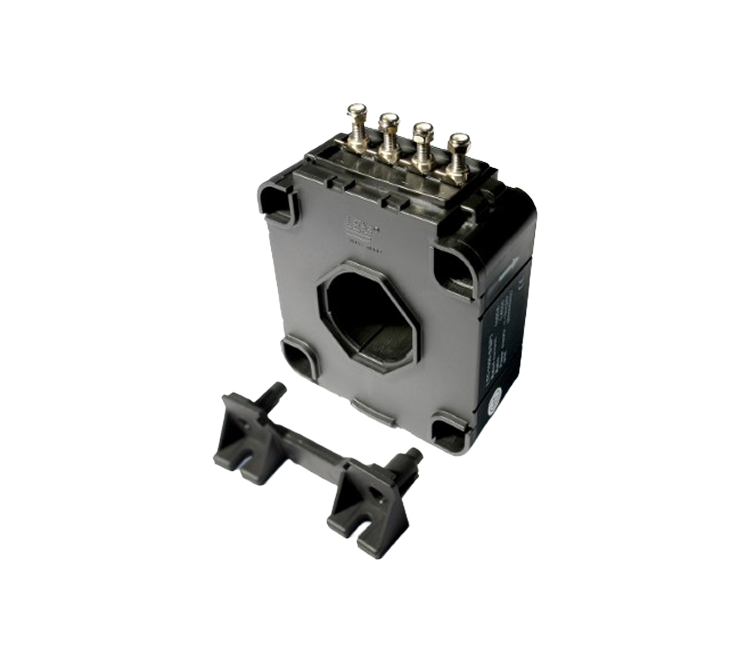

Modular closed loop Hall Effect current sensors for traction applications: horizontal or vertical mounting with three possible vertical configurations; the busbar and feet can be delivered integrated or separately, with the busbar mountable in two orientations to suit installation requirements. Aperture is 27.5mm diameter on smaller models and 42×12mm or 42mm diameter on larger models; shield available as standard; secondary connections via 4×M5 threaded studs or 4×Faston terminals or cables.

IRIS compliant; CE marked to EN 50155 and EN 50124-1; -40°C to +85°C. Used in main converters, auxiliary power units, circuit breakers, and rolling stock heavy traction systems.
